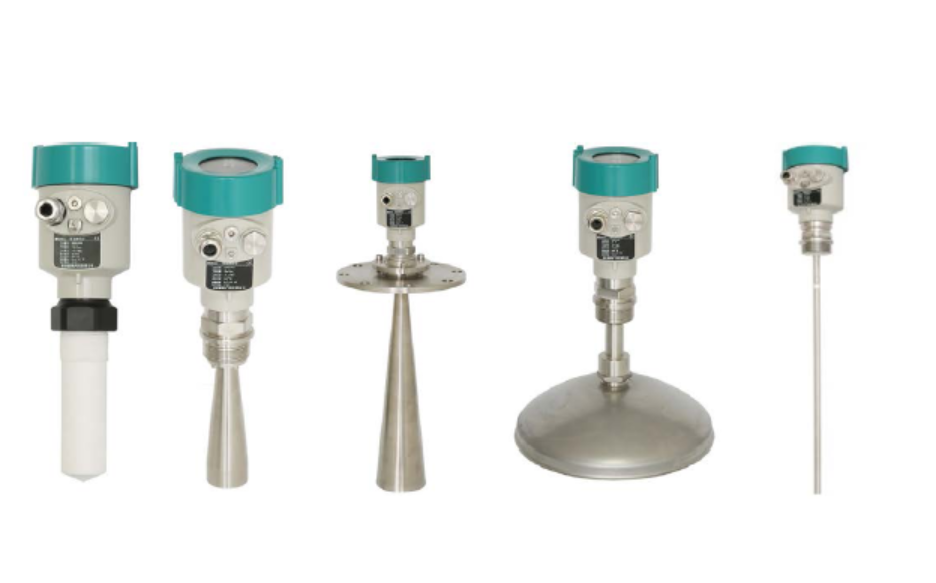

Key Features
- High-Frequency Precision: Utilizing advanced radar technology, the SWNR1000A offers unparalleled accuracy in level measurement.
- Long Range Measurement: Capable of measuring distances up to 70 meters, making it suitable for large-scale industrial environments.
- Optimized Antenna Design: The newly enhanced antenna ensures superior performance and reliability even in complex measurement conditions.
- Advanced Signal Processing: Equipped with a state-of-the-art microprocessor, the SWNR1000A excels in signal analysis and processing, ensuring accurate readings in challenging environments.

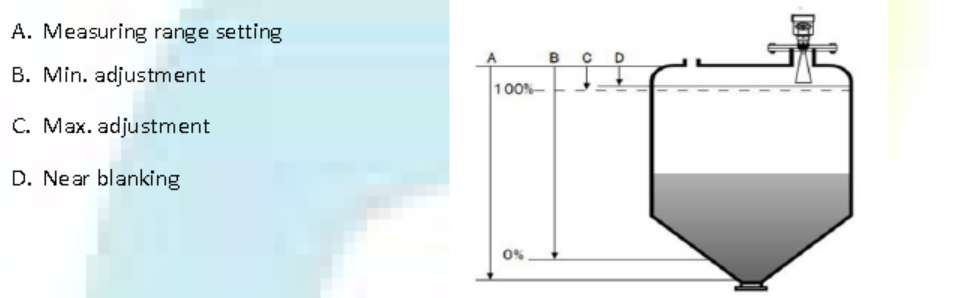

Working Principle
The SWNR1000A Series Radar Level Transmitter operates on the principle of microwave pulse reflection. Here's how it works:
Pulse Emission: The radar level antenna, engineered by Petrotech, emits narrow microwave pulses.
Reflection: When these pulses encounter the surface of the measured medium, they are reflected back towards the antenna.
Signal Reception: The antenna system receives the reflected microwaves.
Signal Processing: The received signal is transmitted to the electronic circuit where it is partially converted into level signals. Thanks to the high propagation speed of microwaves, the entire process from emission to reception is almost instantaneous, ensuring rapid and accurate measurement.
Applications
The SWNR1000A Series is versatile and can be used in various industrial applications, including but not limited to:
- Reactor Level Measurement: Ensures accurate and reliable level detection in chemical reactors.
- Solid Silo Monitoring: Ideal for monitoring levels in silos containing solids such as grains, minerals, and other bulk materials.
- Liquid Storage Tanks: Suitable for measuring levels in storage tanks holding liquids such as water, oil, and chemicals.
- Process Vessels: Perfect for use in various process vessels across different industries.
Technical Specifications
- Measuring Range: Up to 70 meters
- Frequency: High-frequency radar
- Accuracy: ±3mm
- Process Temperature: -40°C to 250°C
- Process Pressure: -1 to 40 bar
- Output: 4-20mA/HART, Modbus, Profibus
- Power Supply: 24V DC
- Protection Grade: IP68
